Dynamo has introduced a
pretty cool way to share custom nodes and graphs. To give this a try, I ported a few scripts from my Lunchbox plug-in to Dynamo custom nodes. Users can search and install these scripts by looking for the
XYZ Cells by Face package...
Contents
- XYZ Quad Grid by Face
- XYZ Triangle Grid by Face
- XYZ Diamond Grid by Face
- XYZ Staggered Grid by Face
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhwNr0OQTxebG08mDpAvfhX536Oo6d-VfPbOgjr9MLm0OeRzLGm1wHkZrsw89l3j3rGZbO4NaCgApm5zhAJaLHl9lYUPdRTZKL7usdzPLxg6bXA5oID8_80hDD5MNFc_AtmrHIdoOOSAPA/s640/XYZ+Quad+Grid+-+Nodes.JPG) |
Custom user nodes can be installed through Dynamo's package manager. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg62PobPvU7S0e5AJAnBUVp-uRyPl_HlHCxs3BTuY-y-6AgfHCdESl6e4pwvvi-jvix3ga_rZmWHHEdwBU6Xbcc_5ryCqX3qVE8eRX5sSXspdU6m2d-id4TcMikAufgGDmu64O9y24PT-0/s640/Install.png) |
The new Dynamo package manager... nice concept for distributing custom nodes! |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiGYqlhGuoJwIThHdZ0u3WwNezipqMfmiOeXjYM5aoVD4dl8OgHHjzoM52vT-gYP0CYPr3Z1utn4KH0WvWr7ByssIO7XkkeWkKDBvymVs0jevhlpbZxpNqjoNuy2PksWlUxio82OPOYT0k/s640/Python.JPG) |

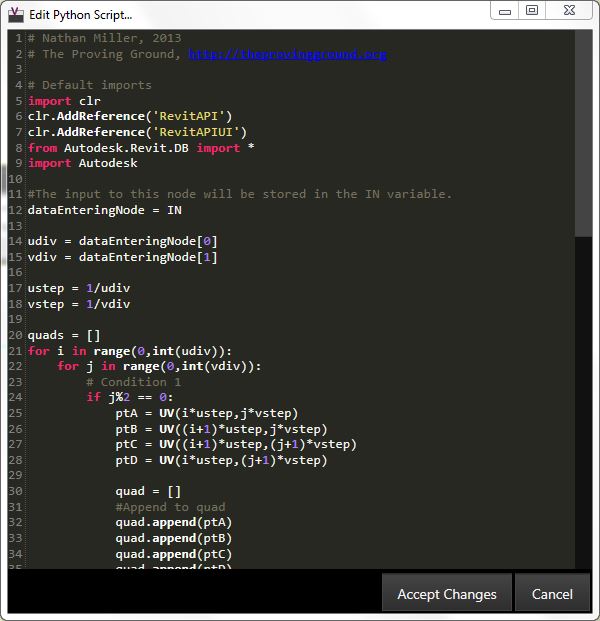

The XYZ Cell nodes utilize some custom Python scripts. Feel free to re-use and modify :) |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiFrjd_pT3J-n3Ftwdwp4b0Am3TmjS1xAtNk41BRbctEH_yJNLa9qXq8_DiAbaSKJO-TVODepmIvo4xvCAtN1PU_F-RsQYJHFE5snqGfU0NCY-hEM1_kJfFJLEQ6c8ijhjxV3OddSGlLis/s640/XYZ+Grids.JPG) |

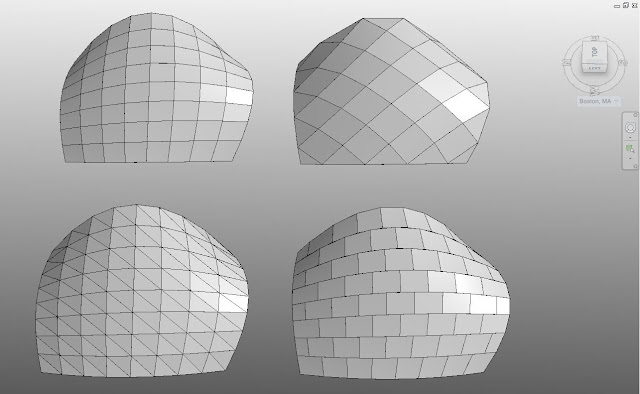

A few different patterns made up of Adaptive Component panels |
