Saturday, January 31, 2015

Rhynamo - Refactored and Data-centric

The new version of Rhynamo exposes new data from 3DM files

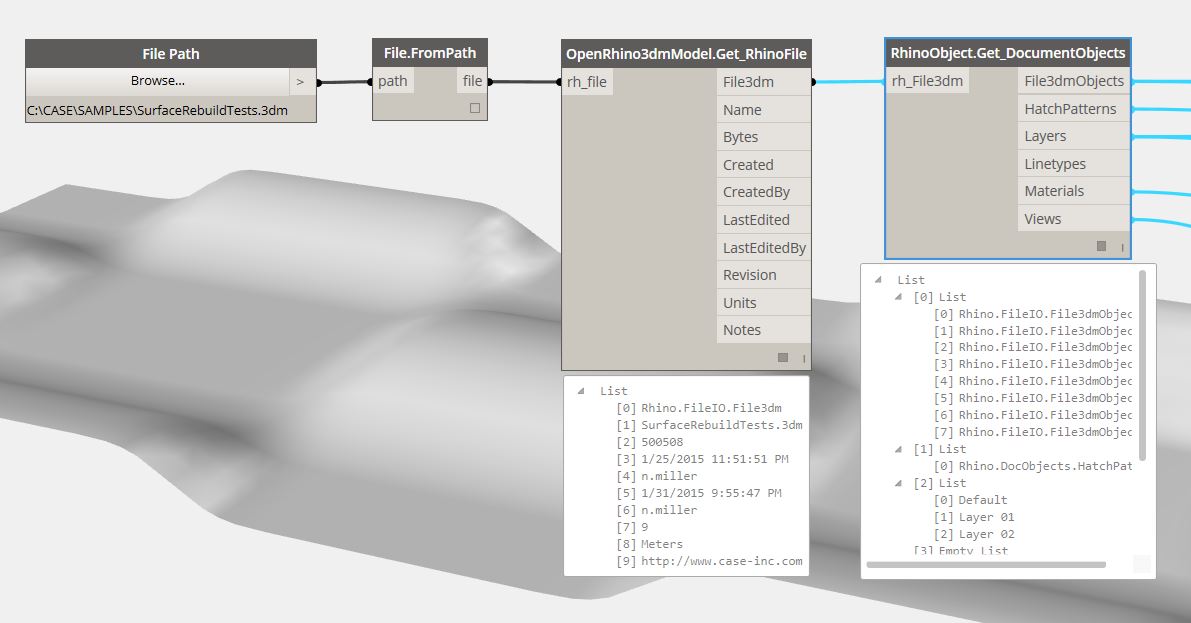

There is much more to Rhino files than NURBS geometry.  This latest release of Rhynamo extends the users ability to access different data and objects within a Rhino file from Dynamo... from general file information, to layers, or materials.  Geometry conversions will also return other important information about the object including GUIDs, layers, colors, and names.

In order to better develop this new functionality, the Rhynamo library has been refactored Rhynamo's for better organization... this will almost certainly break existing definitions that use older versions, but this is an important evolutionary step for this tool.  Older versions are still downloadable on the package manager for legacy use.

Visit the Rhynamo source to get the latest...

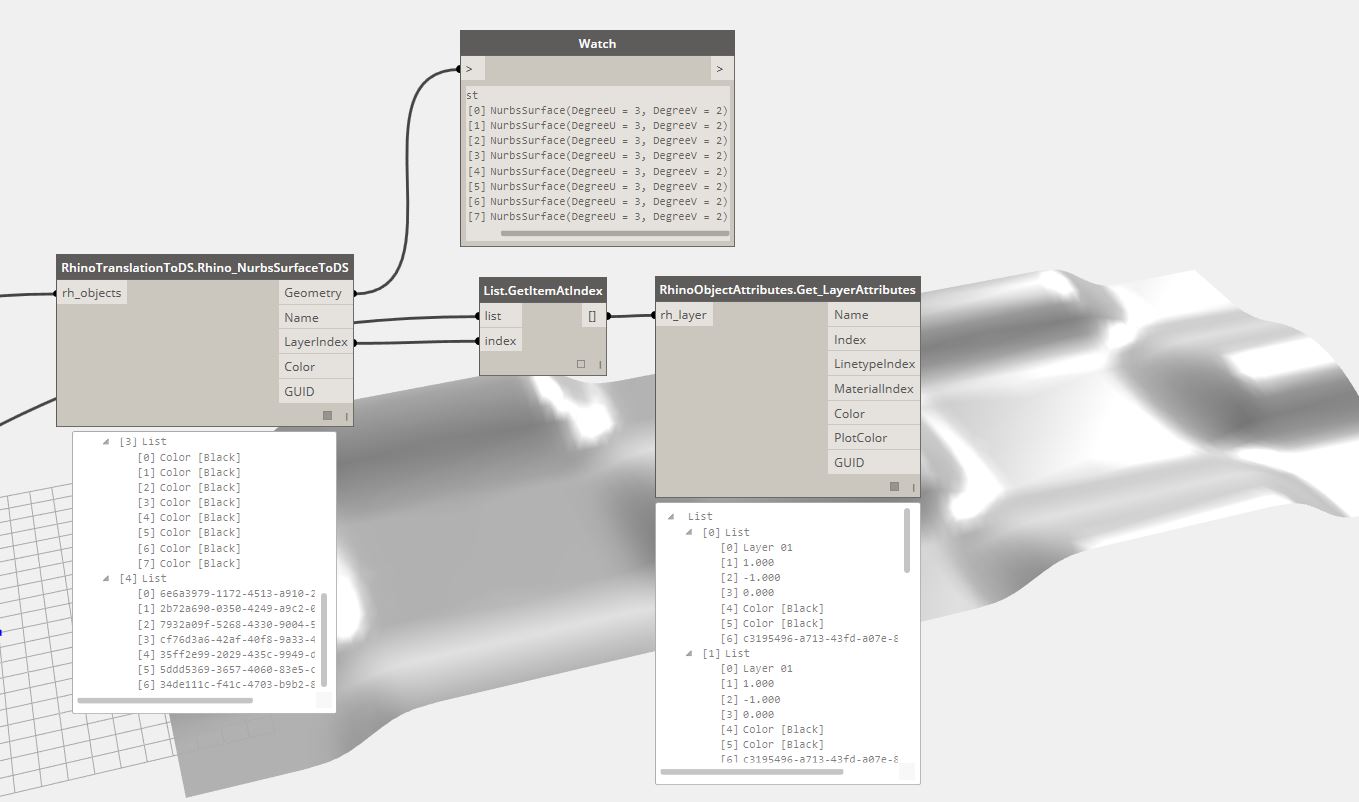

Geometry converters also return information about object GUIDs, names, layers, and colors.

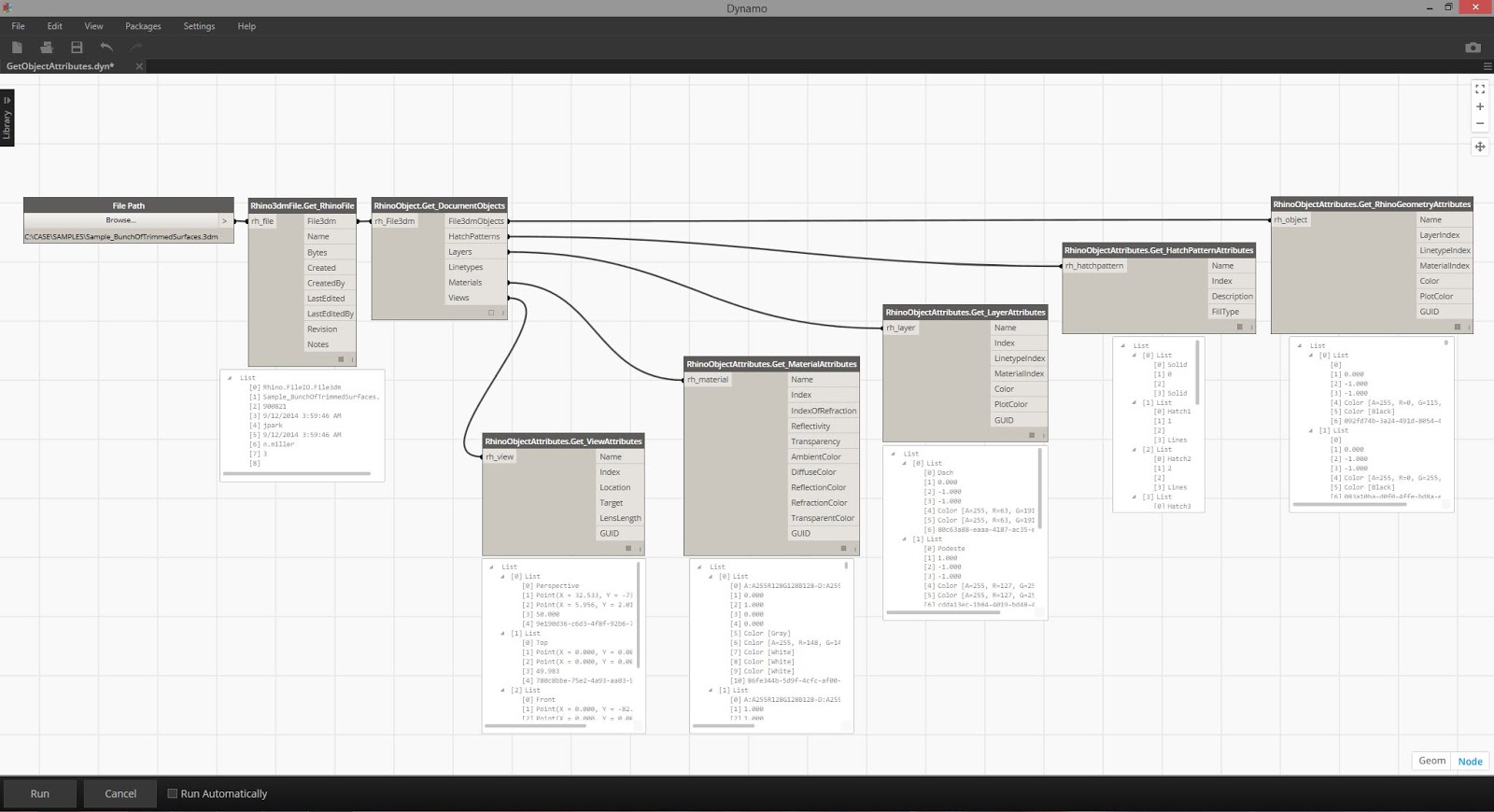

Materials, layers, linetypes, hatch patterns, and camera view data is now available.

Friday, January 2, 2015

Parametric Forms for Dynamo with LunchBox


I have had a long standing fondness for parametric forms and surfaces that I thought it was about time I re-introduced some of them into the LunchBox package for Dynamo.  The Grasshopper plug-in already had many of them implemented so it was a matter of migrating some of the code to the Python nodes.  Dynamo is a bit touchy with self-intersecting surfaces and there is currently no way to establish "preset" parameter inputs for a node.  With that in mind, I have also included a few sample definitions in the latest package so you can check out some of the parameters.

Have fun.... oh and Happy New Year!
